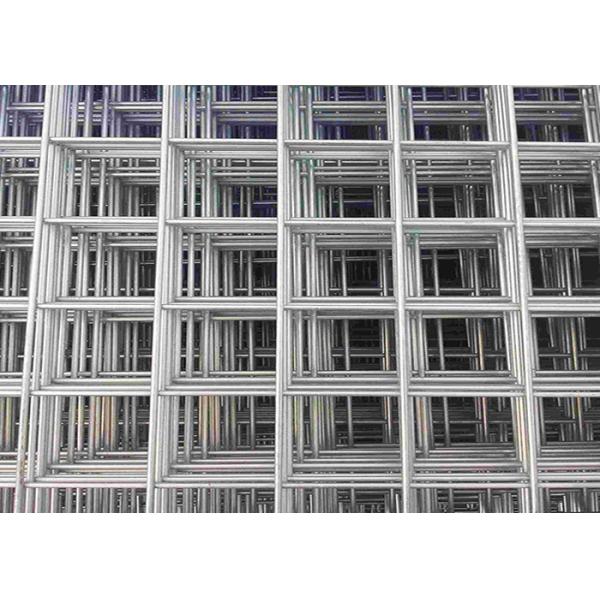

2x2 4mm Welded Wire Mesh , Galvanised Steel Wire Mesh Sheet

  • 1
  • 2

Brand Name : HuanHang

Model Number : GWWM1

Place of Origin : ANPING

MOQ : 1Roll

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Rolls per 3days

Delivery Time : 3-5 days

Packaging Details : Welded wire mesh usually packed with plastic film, outside wrapped with waterproof paper. or according to customers requirement.

Certification : SGS

name : 4mm 1x2 Inch 2x2 Inch/Green/ Electro Galvanized Welded Wire Mesh

color : silvery Green

Hole Shape : square

Processing Service : welded

Surface treatment : galvanized

Usage : Construction Wire Mesh

MOQ : 1 Roll

Application : Fence Mesh

Contact Now

4mm 1x2 Inch 2x2 Inch/Green/ Electro Galvanized Welded Wire Mesh

Product Description

Welded wire mesh

Welded wire mesh, or welded wire fabric, or "weldmesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing, this kind mesh can be used in many places, which is multifunctional.


Welded Mesh Roll Specification

Mesh Wire Diameter
In Inch In MM Wire Gauge In MM
1/4" x 1/4" 6.4mm x 6.4mm 22#-24# 0.7mm-0.6mm
3/8" x 3/8" 10.6mm x 10.6mm 19#-22# 1.0mm-0.7mm
1/2" x 1/2" 12.7mm x 12.7mm 16#-23# 1.6mm-0.6mm
5/8" x 5/8" 16mm x 16mm 18#-21# 1.2mm-0.8mm
3/4" x 3/4" 19.1mm x 19.1mm 16#-21# 1.6mm-0.8mm
1" x 1/2" 25.4mm x 12.7mm 16#-20# 1.6mm-0.9mm
1" x 1" 25.4mm x 25.4mm 14#-21# 2.0mm-0.8mm
11/2" x 11/2" 38mm x 38mm 14#-19# 2.0mm-1.0mm
1" x 2" 25.4mm x 50.8mm 14#-16# 2.0mm-1.6mm
2" x 2" 50.8mm x 50.8mm 12#-16# 2.6mm-1.6mm

Welded Mesh Panel Specification

Opening/ Length Opening/ Width Wire Diameter Roll Size Material
25-100mm 10-100mm 2mm Width: 0.5-2.5m

Length: 1-6.5m		 1) Electro Galvanized Wire

2) Electro Galvanized after Welded

3) Hot dipped Galvanized Wire

4) Hot dipped Galvanized after Welded

5) PVC Coated

6) Stainless Steel Wire
25-100mm 10-100mm 2.5mm
25-100mm 10-100mm 3mm
25-100mm 10-100mm 3.5mm
25-200mm 10-200mm 4mm
50-200mm 10-200mm 5mm
50-200mm 20-200mm 6mm
50-200mm 20-300mm 7mm
100-500mm 30-300mm 8mm
100-500mm 30-300mm 9mm
100-500mm 30-300mm 10mm
4''x6'' 101.6x152.4mm BWG15-12
6''x6'' 152.4x152.4mm BWG15-12
6''x8'' 152.4x203.2mm BWG14-12

2x2 4mm Welded Wire Mesh , Galvanised Steel Wire Mesh Sheet2x2 4mm Welded Wire Mesh , Galvanised Steel Wire Mesh Sheet2x2 4mm Welded Wire Mesh , Galvanised Steel Wire Mesh Sheet2x2 4mm Welded Wire Mesh , Galvanised Steel Wire Mesh SheetTechnical Note:

1,Standard roll length: 30m;width: 0.5m to2m

2,Special sizes available at request
